Chip Resistor Cutting Machine
Model: NYB-350

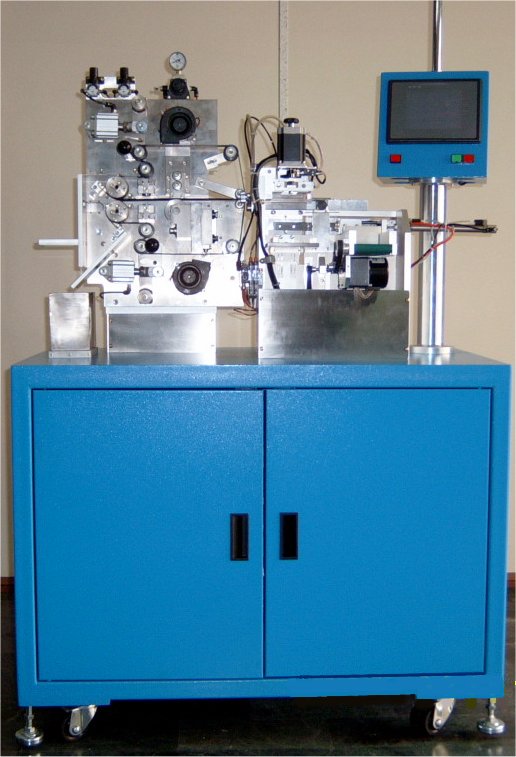

NYB-350 Front View

Product Overview

This machine is for secondary cutting of chip resistors. After first cutting and terminal-electrode processing, it performs secondary cutting and automatically rejects reverse-side-inserted parts to improve downstream stability.

Why Choose NYB-350

Approx. 180 strips/min
Output speed
20 trays
Automatic tray replacement
Dual reverse-side rejection
Defect handling mechanism

Key Features

  • Supports multiple chip-resistor sizes with balanced throughput and stability.
  • Simplified operation and maintenance workflow improves on-site management.
  • Automatic reverse-side rejection reduces material-mixing risk.

Implementation Flow

  1. Requirement confirmation: clarify product size, cutting speed, and quality targets.
  2. Mechanism evaluation: confirm tray, transfer, and cutting conditions.
  3. Machine-trial validation: confirm rejection and cutting quality using samples.
  4. Implementation training: establish standard parameters and line-change workflow.
  5. Mass-production support: continuous optimization by on-site yield and CT.

Images + Video

Equipment Images

NYB-350 chip resistor secondary-cutting machine

Key Specifications

  • Product Size: 0402
  • Tray size: 63W*12D*75H, customizable by requirement
  • Throughput: output speed approx. 180 strips/min
  • Cutting speed: 3-35 m/min
  • Belt size: 30W*800L
  • Tray switching: approx. 5.5 s
  • Tray storage: 20, automatic replacement
  • Two reverse-side handling modes: 1) direct reject, 2) auto reject with stop on failure
  • Power: AC220V single-phase
  • Dry air: 5 kgf/cm²
  • Machine dimensions: 960W*580D*1,400H (without tower light), 960W*580D*1,850H (with tower light)
  • Machine weight: approx. 200 kg

Applications

Secondary cutting of chip resistors

Detailed Datasheet

Click here to view or download

Related Resources

Download NYB Datasheet View FMS-500L

Use Cases

Implementation experience in Kaohsiung and Hukou

NYB series has implementation experience in Kaohsiung and Hukou, with parameter tuning by on-site cutting takt and quality requirements.

FAQ

Is it limited to 0402 only?

Yes. We first evaluate your product size/conditions, then recommend the suitable configuration.

What information should be prepared before implementation?

Please provide product size, target CT, cutting quality requirements, and site constraints.
