Vibratory Feeder Set
Product Overview
This vibrator assembly uses rotary and linear vibration to align and transport micro parts to downstream inspection or packaging stations, suitable for visual inspection and test-and-pack machines.
Why Choose Vibrator Assembly
01005
Validated minimum supported size
4032
Validated largest package type
Custom track
Feeding optimized by part
Key Features
- In-house designed feeder base provides stable amplitude/frequency and more uniform feeding.
- Bowl and linear feeder surfaces are customizable by part characteristics for both speed and stability.
- Supports side/orientation recognition and automatic amplitude control as needed.
- Validated for chip resistors, chip capacitors, inductors, QFN, and more.
Implementation Flow
- Requirement interview: confirm part size, orientation requirements, and target takt.
- Track design: plan feed direction, side-recognition strategy, and key dimensions.
- Test validation: on-machine verification of feed stability and speed.
- Commissioning: on-site tuning, parameter setup, and training.
Images

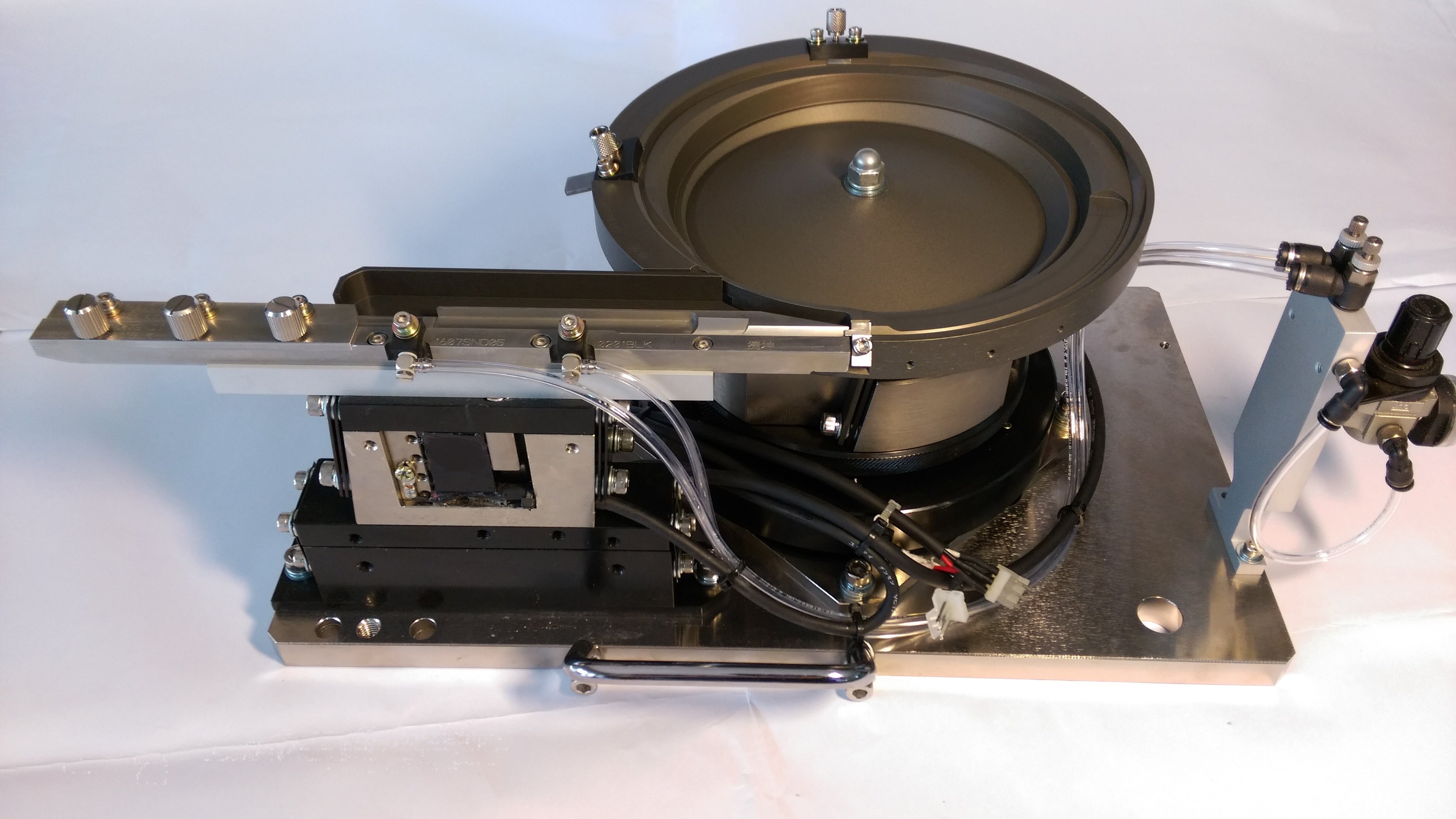

Equipment Images
Technical Specifications
- Vibration module: bowl feeder + linear feeder + controller integration
- Controller compatibility: supports standard bowl/linear feeder controllers
- Optional features: side recognition, orientation recognition, automatic amplitude control
Applications
- Visual inspection machine
- Test-and-packaging machine
Resources
Use Cases
Implementation Experience | Customized Feeding Integration
A common need is feed stability and takt consistency during multi-SKU changeovers. Custom tracks and parameter standardization reduce changeover risk and improve front-end feed stability.
FAQ
Can tracks be customized by component geometry?
Yes. Track design and validation are performed first based on component size and orientation needs.
Can it work with existing machine controllers?
Yes. Compatibility can be evaluated, with recommended controller and wiring plans.
