Custom Machine Vision Lighting
Product Overview
JKP provides custom light design. Lighting color, incident angle, curvature, and radius can be tuned to part material, reflectivity, and inspection conditions, with high-speed trigger and strobe control to improve image quality.
Why Choose Custom Light
Custom optics
Configuration by part characteristics
Rapid sampling
Shorter implementation evaluation cycle
High-speed triggering
Matched to vision inspection takt
Key Features
- Flexible combinations of color temperature and wavelength help highlight key defects.
- Curvature and radius are adjustable for different part sizes and inspection angles.
- Supports trigger and strobe settings with controllers to reduce motion-blur risk.
Implementation Flow
- Requirement interview: confirm part material, defect patterns, and inspection speed.
- Optical design: plan lighting type, angle, and control conditions.
- Pilot validation: test image contrast and defect-recognition performance.
- Implementation support: provide parameter recommendations and on-site tuning support.

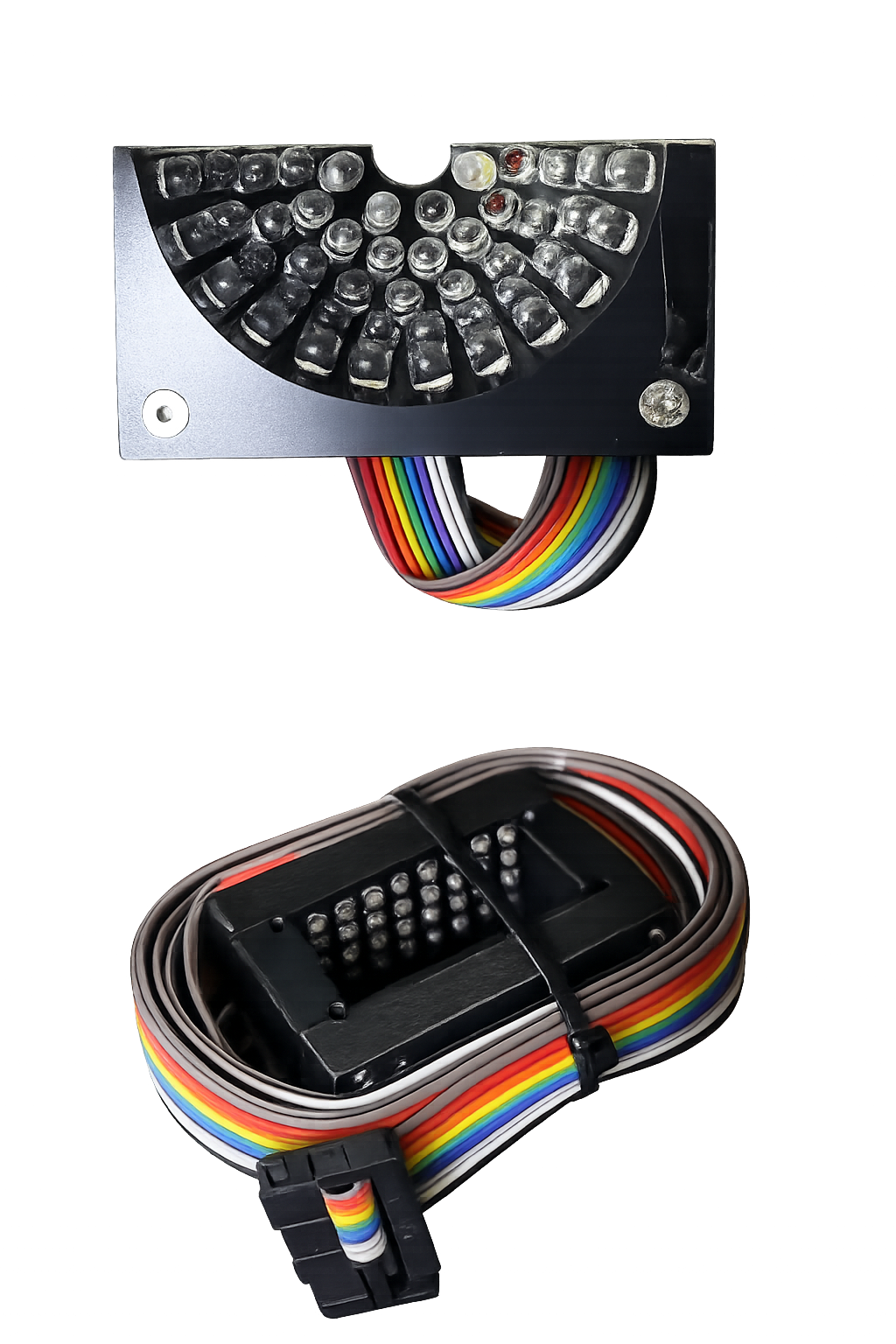

Images
Technical Highlights
- Lighting color, brightness, and angle can be configured by inspection requirements.
- Can integrate light controllers for trigger, strobe, and synchronization settings.
Application Scenarios
- Component visual inspection lighting
- Carrier tape inspection lighting
- High-speed vision supplemental lighting
Related Resources
Use Cases
Implementation Experience | Multi-Process Optical Improvement
After tailoring lighting by material and defect type, defect contrast and judgment stability improve, reducing parameter-adjustment time.
FAQ
Can we test samples before finalizing specs?
Yes. Please provide samples and inspection requirements for optical sampling evaluation first.
Can it integrate with existing controllers?
Yes. We can evaluate existing interfaces and signal conditions, then provide integration recommendations.
