Vision Positioning Screen Printing Machine
Model: VAP-100
Product Overview
VAP-100 is a precision screen printer for ceramic substrates in chip resistor production. It combines dual-camera vision positioning with PC-based vision control and PLC motion control to deliver stable setup and fine alignment for miniature components.
Why Choose VAP-100
Built for stable alignment, fast setup, and controlled deployment to keep high-precision printing quality consistent in production.
Features
- The screen holder supports independent front/back, left/right, up/down, and rotation adjustments with dial indicators for easier precision setup.
- Each camera has X/Y/Z adjustment and a shared X/Y/theta platform. Micrometer-based adjustment with nine guide rails enables fine alignment with straightforward operation.
Implementation Flow
- Requirement review: confirm workpiece size, CT target, alignment tolerance, and on-site constraints.
- Solution evaluation: propose machine configuration and feasibility suggestions.
- Sample and validation: run tests based on target conditions and confirm quality goals.
- Deployment and training: deliver the machine, establish parameters, and train operators.
- Production support: optimize settings continuously based on mass-production feedback.
Applications
Chip resistor product lines
Images

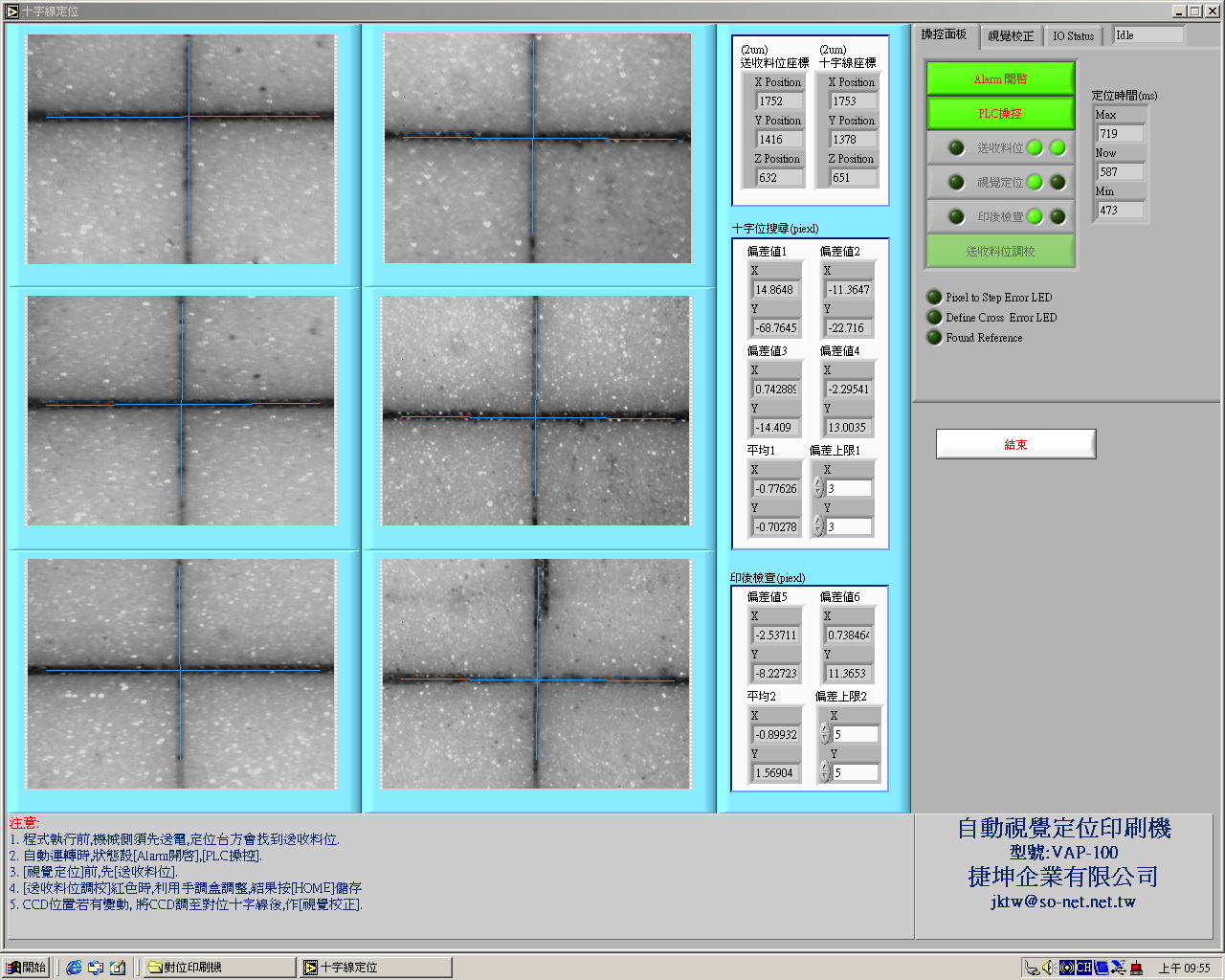

Machine and Interface
Key Specifications
- Capacity: approx. 9 sec/pc (printing only, no post-print inspection)
- Workpiece size: 49.5 mm x 60 mm (thickness 0.25 mm to 1.0 mm)
- Material trays: 2 trays with automatic switching
- Workpiece output: 18", 8 pcs each batch, 56 mm pitch
- Output height: 890 +/- 30 mm
- Operator interface: color HMI + physical buttons
- Controller: PLC
- Vision controller: industrial PC with Windows 10/11 and 19" LCD
- Printing area: 60 mm x 60 mm
- Frame size: 290 mm x 340 mm x 16 mm
- Squeegee speed: 50 to 2,500 cm/min
- Ink return speed: 50 to 1,000 cm/min
- Printing force: 1.0 to 6.5 kg
- Frame position adjustment: X +/-3 mm, Y +/-3 mm, rotation +/-1 degree (handwheel)
- Frame height adjustment: 0 to 3 mm (motor + button)
- Squeegee drive: lead screw + servo motor
- Print head opening: pneumatic tilt-open type
- Printing table repeatability: +/-0.005 mm
- Camera: 1394b mono CCD x 2
- Objective lens: 3X
- Auxiliary lens: 1.5X
- Optical resolution: 0.00167 mm/pixel

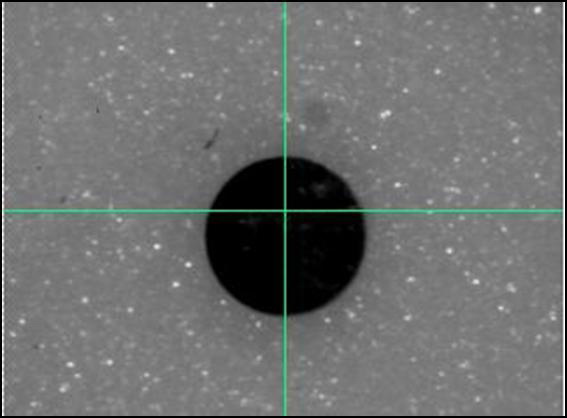

- Alignment method: laser cross marks at top-left and bottom-right, with 1 mm clear area around each center
- Lighting source: 150 W lamp box + one-to-two fiber bundle
- X adjustment stage: cross roller guide + lead screw + 5-phase stepper motor, resolution 0.002 mm/pulse
- Y adjustment stage: cross roller guide + lead screw + 5-phase stepper motor, resolution 0.002 mm/pulse
- Theta stage: circular cross guide + steel belt + cross guide + lead screw + 5-phase stepper motor, linear resolution 0.002 mm/pulse, arc resolution 0.002438 degree/pulse
Datasheet
Related Resources
Use Cases
Scenario: As production shifted to 0201 parts, tolerance windows became tighter and setup time frequently slowed line changes.
Result: With VAP-100 dual-camera alignment and standardized setup flow, first-article confirmation became faster and changeovers became smoother, improving production stability.
Scenario: Frequent product switching made parameter consistency difficult to maintain.
Result: Standardized workflow and vision alignment reduced switching risk and minimized variation caused by operator experience differences.
Video
VAP-100 Live Demo
Demo videos for specific processes and workpieces are available on request. Please contact us via the floating CTA.
FAQ
Can parameters be optimized for our target CT?
Yes. We evaluate your workpiece specs and CT goal first, then provide recommended settings.
How do we start an evaluation?
Share your workpiece dimensions, precision target, and current bottlenecks, and our team will arrange a technical review.
Prepare Before Email
- Workpiece dimensions and thickness range
- Target CT (cycle time) and daily output
- Precision target and current process bottlenecks
